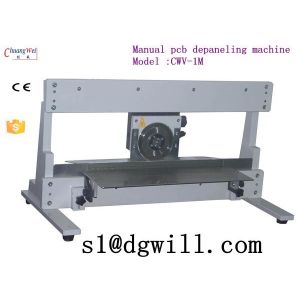

Manual V-cutting PCB Depaneling Machine Circle Blade / Linear Blade

Brand Name : Chuangwei v-cutting machine

Model Number : CWV-1M

Certification : Ce Certification

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 80 sets/ year

Delivery Time : within 3 days after receive the payment

Packaging Details : plywood case

warranty : free for one year

establish year : 1999

cutting length : 460mm

shipping way : EXW / FOB

Material : high speed steel

system : operated by hands

Contact Now

Manual V-cutting PCB Depaneling Machine Circle Blade / Linear Blade

Specification for manual pcb cutting machine

Machine size 787*400*436mm
Max . pcb cutting length 460mm
Minimize Speed Manual
Minimize thickness 0.6-3.5 mm
Machine weight 55 kg

CWV-1M separates both small and large pre-scored PCBs . The table and the rest can be continuously adjusted to the most suitable working position . The slit between the linear blade and the rest can be adjusted to ensure that the side strips fall through and are sorted out . The PCB is placed with its pre-scored groove onto the linear blade and the circular blade is then drawn by hand across the PCB. The distance between the upper guide and the linear blade is adjustable to ensure that the PCB is only separated in the pre-scored groove . The pre-scored grooves can be interrupted by any number of cutouts . If components project above the groove , the linear blade needs to be omited . In such a case , please contact us .
